Water Heater Thermostat ( KS-EWT )
RM 0.00
Water Heater Thermostat ( KS-EWT )
KS-EWT series thermostat features (automatic cycling) and high limit (manual reset) in one small housing.
Compact size ( 3-3/4" overall length ) assures firm clamp onto tank.
Controls have snap action operation, fast and easy wiring, and adjustable temperature range.
TUV approved : R 50237753 0001
Specifications :
| Thermostat control | 30 amp @ 240 Vac |
| Hi-Limit control (Manual reset portion) Wattage input | 30 amp @ 240 Vac 125 VA pilot duty @ 120 - 480 Vac 3600 W @ 120 Vac, 7200 W @ 240 Vac |

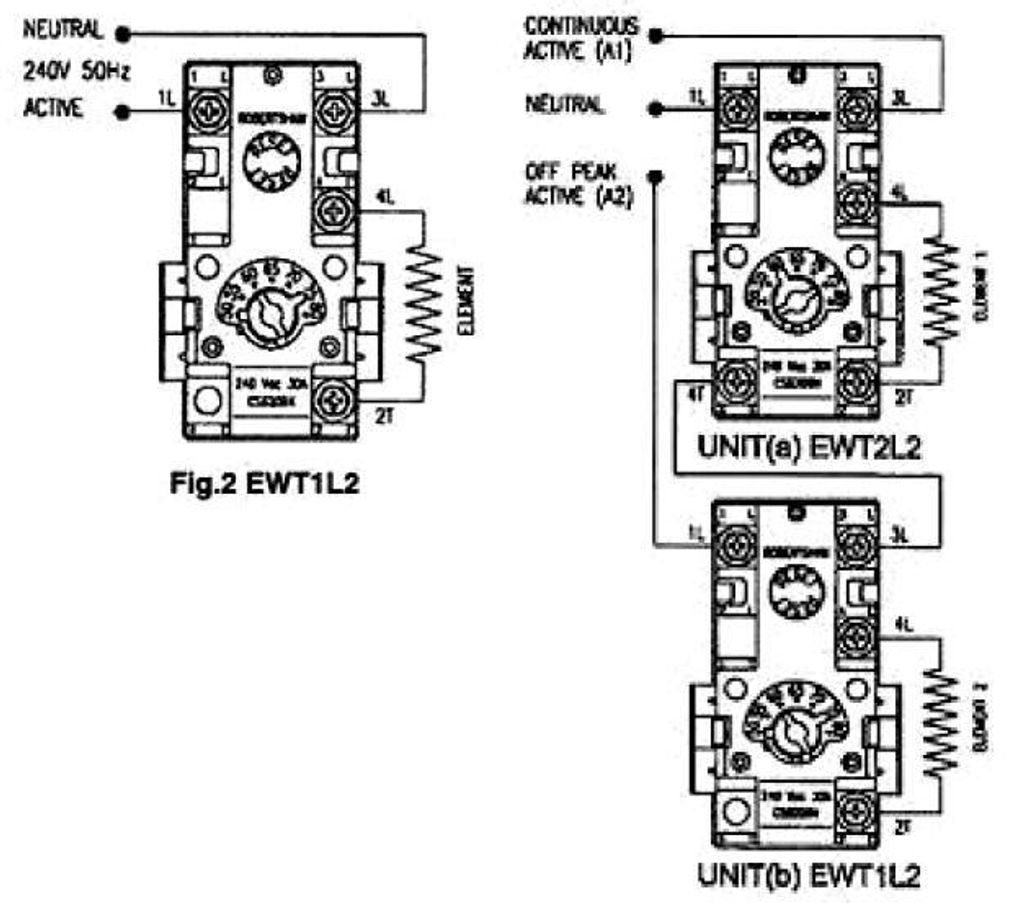

| Model | Typical application | Switch type | Temp. range | Differential temp. |
| KS-EWT1L2 | Single | SPST/DPST High Limit | 60 - 80 deg. C ( Limit 88 deg. C ) | 10 deg. C |
| KS-EWT2L2 | Upper | SPDT/DPST High Limit | 60 - 80 deg. C ( Limit 88 deg. C ) | 10 deg. C |
Note :
All the above descriptions are subject to change without notice
Picture is for illustration only
Delivery : 3 to 5 days (in-stock unit) else 2 to 4 weeks (pre-order unit) subject to factory confirmation
Goods sold are non-returnable
Subject to minimum order quantities
