Sunvic Stem Type Thermostat
RM 0.00
Sunvic Stem Type Thermostat SPST
This rod thermostats for immersion heaters provide unsurpassed performance and service and at the same time totally overcomes all concerns about complying with newly effective regulations pertaining to this type of control. The thermostats have side entry terminals for easier cable connection.
Specifications :
| Contacts | SPST |
| Function | Break on temperature rise Make on temperature fall |
| Voltage | 240 / 250 VAC |
| Load current | 16 / 20 A |
| Switch action | 1°C on opening 2°C on closing |
Optional accesories :
- Metal pockets with 1/2" BSP taper threads are available for rod thermostat
| Part number | Reset type | Stem Ø (mm) | Stem length (mm) | Rating | Temperature range (°C) | Differential temperature (°C) |
| VKL 2201 | Auto | 7.5 | 178 / 7" | 240V, 16A | 50 to 80 | 10 |
| VKL 2203 | Auto | 7.5 | 178 / 7" | 240V, 16A | 25 to 65 | 10 |
| VKL 2251 | Manual | 7.5 | 178 / 7" | 240V, 16A | 45 to 95 | - |
| VKL 2301 | Auto | 7.5 | 280 / 11" | 240V, 16A | 50 to 80 | 6 |
| VKL 2303 | Auto | 7.5 | 280 / 11" | 240V, 16A | 25 to 65 | 6 |
| VKL 2351 | Manual | 7.5 | 280 / 11" | 240V, 16A | 45 to 95 | - |
| VKL 2401 | Auto | 7.5 | 457 / 18" | 240V, 16A | 50 to 80 | 5 |
| VK 4254 | Auto | 8 | 178 / 7" | 250V, 20A | 30 to 110 | 10 |
| VK 4354 | Auto | 8 | 280 / 11" | 250V, 20A | 60 to 120 | 10 |
Terms & Conditions :

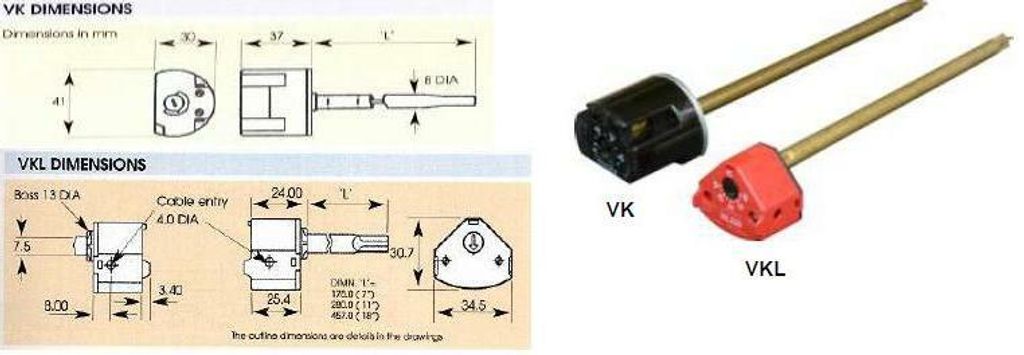

- The above picture is for illustration only
- All the above descriptions are subject to change without notice
- Delivery charges will apply to buyers from Sabah, Labuan & Sarawak
- International buyers, kindly contact us for shipping charges
- Free Shipping Within Peninsular Malaysia Only
- Delivery : approx. 3 to 5 working days ( Peninsular Malaysia )
approx. 7 to 10 working days ( Sabah, Labuan & Sarawak, subject to courier delivery schedule ) - Warranty : No
- Subject to minimum order quantities
