CAEM Safety Thermostat ( TU-V-RM )

RM 0.00


CAEM Safety Thermostat ( TU-V-RM Series )

Single Pole Electric Safety Thermostat

Manual Reset Button

Rating : 240V, 20 Amp

UL-CSA-ENEC approvals

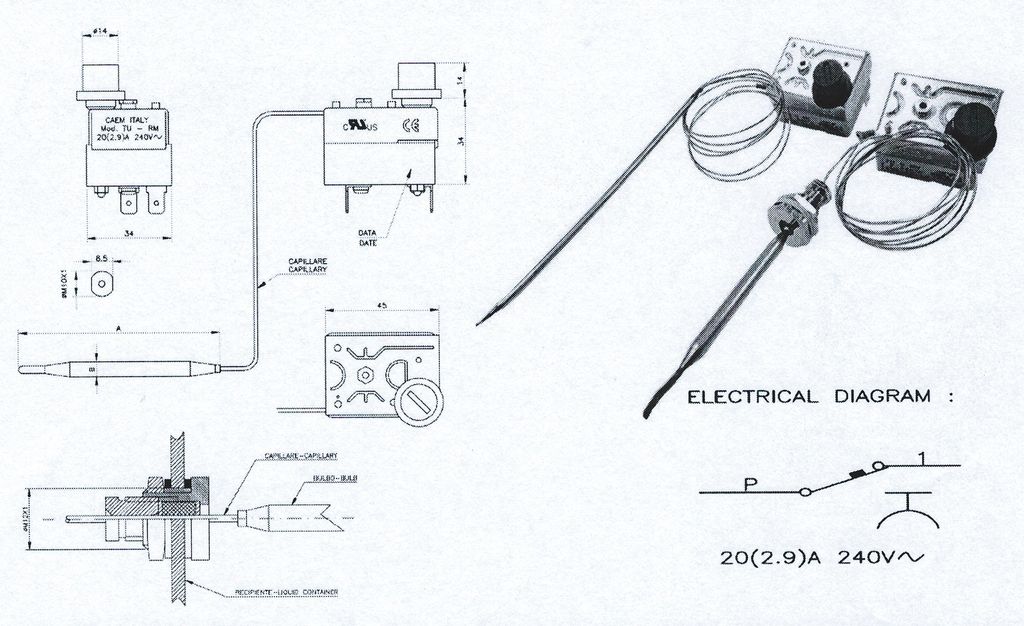

CAEM TU-V-RM series, a single pole manual reset thermostats, which are factory calibrated to a predetermined temperature range for safety cut-off.

When temperature rises, the internal fluid located within the bulb expands through a capillary tube to an expandable diaphragm that is configured within the remote thermostat body. This diaphragm assembly de-activates the electrical contacts at the calibrated temperature set point until the auxiliary button is been reset.

Model

Temperature range

Sensor size

Capillary Length ( mm )

Stuffing box

Ø ( mm )

Length ( mm )

TU-V-RM SPST-120

120°C

5

90

900

M12

TU-V-RM SPST-160

160°C

5

80

900

M12

TU-V-RM SPST-240

240°C

5

80

900

M12

TU-V-RN SPST-360

360°C

3

145

900

NIL

Note : All the above descriptions are subject to change without notice

Country of origin : Italy

Delivery : Pre-order unit subject to factory confirmation

Subject to minimum order quantities

Goods sold are non-returnable.
