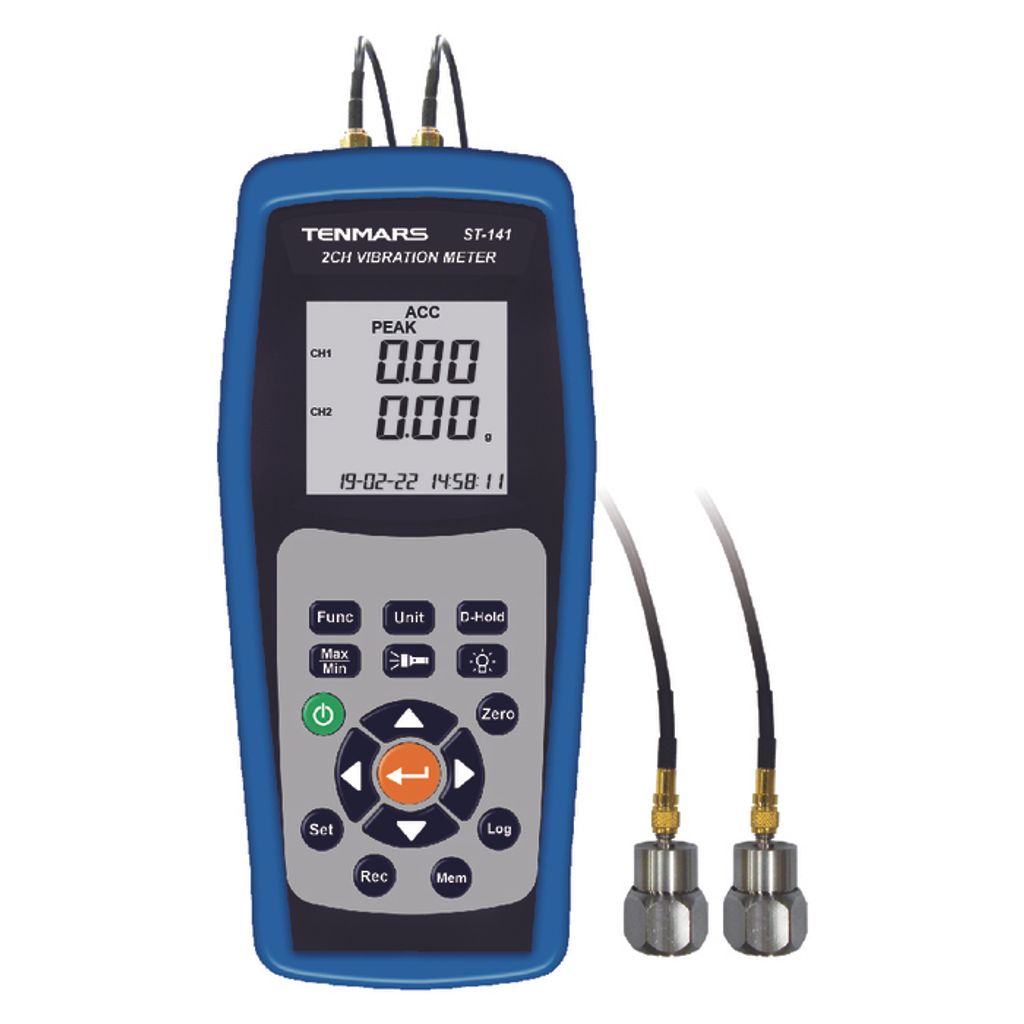

Vibration Meter ( ST-141 )

RM 0.00


Model : ST-141

2 Channels

Features :
- Wide frequency range of 10 Hz to 5 KHz
- Meets ISO2954 sensor for accurate measurement
- Frequency :-
   Lo range : 10 Hz ~ 1 KHz meets ISO 2954-2012 measurement
   Hi range : 10 Hz ~ 5 KHz
- Stores 99 records manually
- Resolution : 0.1 m/s2, 0.01g, 1ft/s2, 0.1 mm/s, 0.01 cm/s, 0.01 inch/s, 0.001 mm, 0.001 inch
- Acceleration, velocity and displacement measurement
- Vibration sensor with magnetic adapter on 1.2M (47.2") cable
- MAX reading, Record/Recall MIN
- Auto power off with disable function
- Offset adjustment used for zero function

Specifications :

Measurement frequency rangeAcceleration 10 Hz - 1 KHz (Lo); 10 Hz - 5 KHz (Hi)
Velocity 10 Hz - 1 KHz
Displacement 10 Hz - 1 KHz
Measurement rangeAcceleration 0.5 - 199.9 m/s2, 0.05 - 20.39g, 2 - 656 ft/s2
Velocity 0.5 - 199.9 mm/s, 0.05 - 19.99 cm/s, 0.02 - 7.87 inch/s
Displacement 0.005 - 1.999 mm, 0.002 - 0.078 inch
FunctionAcceleration / Velocity RMS, Peak, Max hold, Hold
Displacement Peak-Peak, Max hold, Hold
Accuracy +/- (5% reading + 5 digits), ref 79.4 / 158 Hz, 23 deg.   C, < 80% RH
Dimension 240 x 100 x 45 mm (L x W x H)
Power supply 1.5V, AA x 6 pcs
AC adapterAC 100 - 240V to DC 9V / 0.5A


Terms & Conditions :

  • The above picture is for illustration only
  • All the above descriptions are subject to change without notice
  • Delivery charges will apply to buyers from Sabah, Labuan & Sarawak
  • International buyers, kindly contact us for shipping charges
  • Free Shipping Within Peninsular Malaysia Only
  • Delivery : approx. 3 to 5 working days ( Peninsular Malaysia )
                    approx. 7 to 10 working days ( Sabah, Labuan & Sarawak, subject to courier delivery schedule )
  • Country of origin : Taiwan
  • Warranty : 1 year against manufacturing defects only

    REMARKS : For warranty claim :-
    - There is NO one to one exchange
    - Instrument need to sent back to manufacturer for rectification, repair & re-calibration
