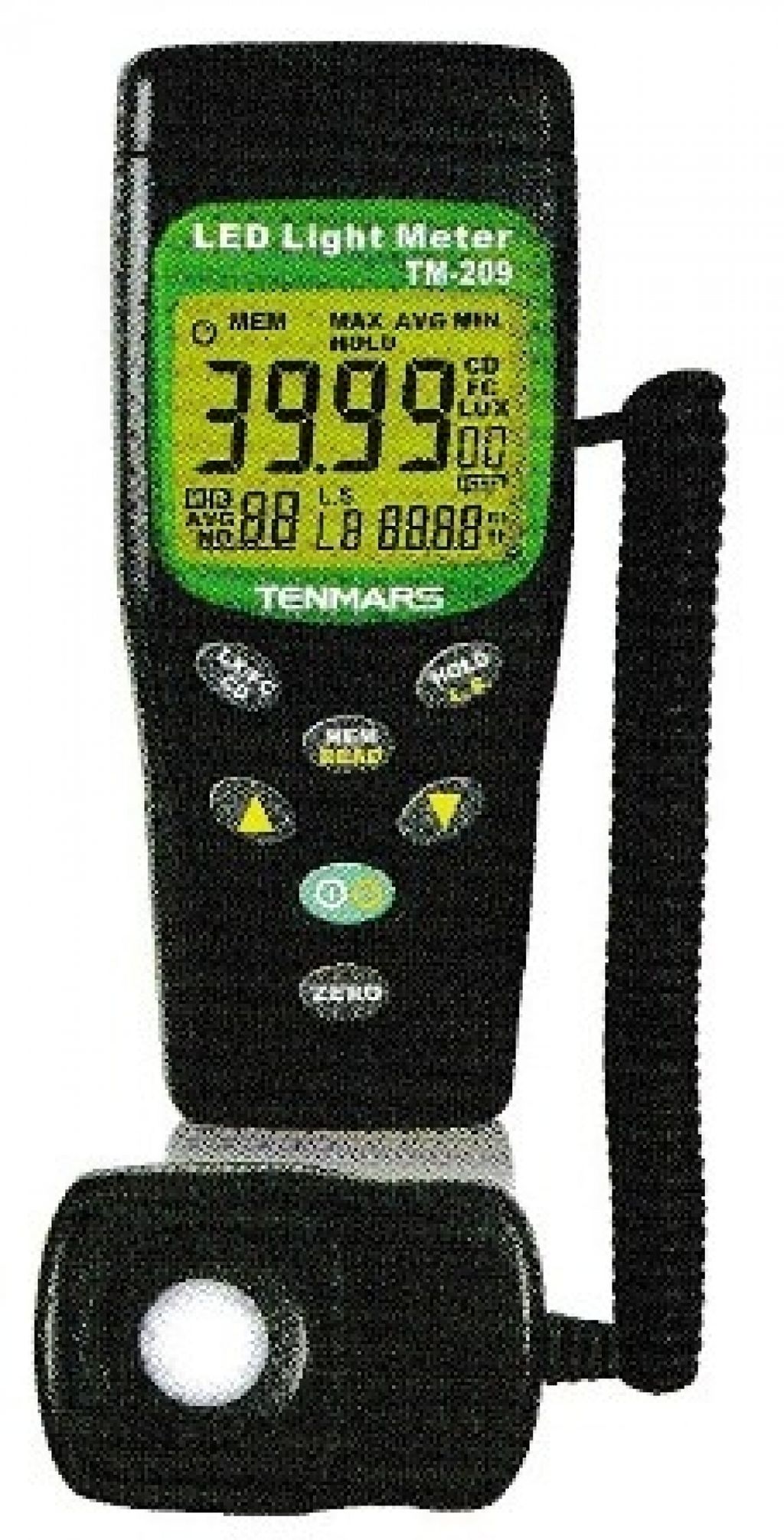

Lux Meter (TM209)

RM 0.00


Model no : TM-209

Features :

- White light LED and whole visible light measuring
- According to JISC 1609 : 1993 and CNS 5119 general A class specifications
- Spectral response close to CIE Luminous spectral efficiency
- Measuring intensities of illumination in Lux or Foot-candle
- Sensor : Silicon photo diode and filter
- Cosine angular corrected
- Data hold

Specifications :

3-3/4 digits LCD with max. reading 4000
Luminous intensity measurement
99 records storage capacity
Auto power off with disable function
Max/Min/Avg hold
Real zero function
Auto ranging



Measuring range40, 400, 4000, 40000, 400000 Lux
40, 400, 4000, 40000 Foot-candle
Meter size130 x 55 x 38 mm (LxWxH)
Sensor size80 x 55 x 25 mm (LxWxH)
Weight250g
Accuracy3% (calibrated to standard incandescent lamp 2856°K and corrected LED day white light), 6% (other visible light source)

User guide for lux meter TM209 Click-here

Terms & Conditions :

  • The above picture is for illustration only
  • All the above descriptions are subject to change without notice
  • Delivery charges will apply to buyers from Sabah, Labuan & Sarawak
  • International buyers, kindly contact us for shipping charges
  • Free Shipping Within Peninsular Malaysia Only
  • Delivery : approx. 3 to 5 working days ( Peninsular Malaysia )
                    approx. 7 to 10 working days ( Sabah, Labuan & Sarawak, subject to courier delivery schedule )
  • Country of origin : Taiwan
  • Warranty : 1 year against manufacturing defects only
